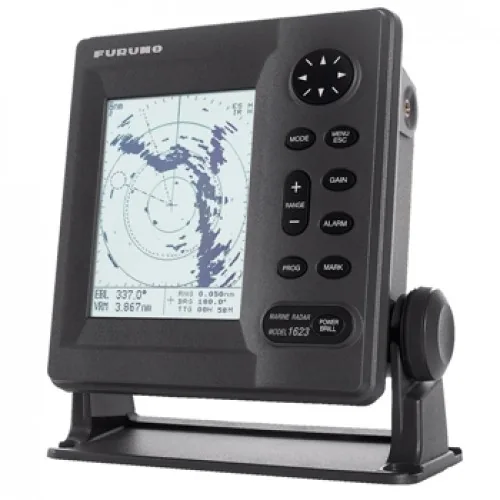

FURUNO 1623 LCD RADAR

Furuno 1623 LCD Radar Standard Features

- Waterproof, 6 Inch Silver Bright Monochrome LCD Display
- 13 User Selectable Range Scales from 1/8 to 16 N.M.
- Ergonomic design with predictable menu
- Display Resolution of 240(H) X 320(V) Dots
- Targets Displayed in up to 4 Levels of Gray Tones
- 2.2 Kilowatt Transmitter Unit
- New Tri-speed 15″ radome antenna, increases RPM at short ranges for better target accuracy
- 3 Transmitter Pulse lengths and Repetition Rates
- Linear Receiver with 10 dB Noise Figure
- Automatic Receiver Tuning
- Automatic or Manual Sea-Clutter (STC) Adjustment
- Automatic or Manual Receiver Gain Adjustment
- Sector Blanking
- Rain Clutter (FTC) Control
- Echo Stretch and Interference Rejection Modes
- Watchman Mode to control the Radar system for Vessel Safety
- Reverse Video Display (White Targets and Marks on a Black Background)
- Full Screen Navigation Data Display in the Standby Mode*
- Omni Pad Control for rapid Cursor and Menu Operation
- Picture Off-Center Shift
- Electronic Bearing Line and Variable Range Marker
- Target or Echo Trails with Selectable Time Intervals
- Waypoint Lollipop On-Screen to aid in Vessel Navigation*
- Adjustable Duplex (In or Out) Radar Guard Zone Alarm
- TLL (Target Lat/Lon) output for use with plotter (must accept TLL sentence info)*
- Time offset adjustment
- [PROG] key provides menu shortcuts
- User programmable Nav Data Screens
- Ability to connect BBWGPS GPS/WAAS receiver
- Wind indication with appropriate sensor input

Furuno 1623 LCD Radar Shipping Information

- 24 lbs., 1 Carton

Furuno 1623 LCD Radar Power Requirements

- 12-24 VDC Only, 36 Watts
- Approximately 8 Watts, in Standby/Watchman Mode
