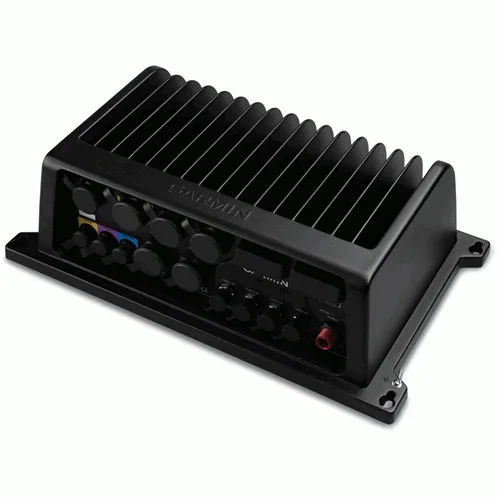

GARMIN GPSMAP 8530 BLACK BOX PROCESSOR WITH U.S. COASTAL CHARTS

What’s In the Box:

- GPSMAP 8530 with BlueChart g2 United States Coastal coverage
- Mounting hardware
- Power cable
- NMEA 0183 cable
- NMEA 2000 2 m backbone/drop cable
- NMEA 2000 power cable
- NMEA 2000 T-connector and terminator kit
- Manual case with documentation

Technical Specifications

Physical & Performance

- Unit dimensions, WxHxD: 16.0″ x 9.4″ x 4.9″ (40.6 x 23.95 x 12.35 cm)
- Display size, WxH: none
- Display resolution, WxH: Up to 1280 x 1024 pixels (external monitor required)
- Display type: None (external display)
- Weight: 10.85 lb (4.92 kg)
- Waterproof: Yes (IPX7)
- Receiver: 10Hz High Sensitivity
- Antenna: External only
- Mounting options: Bail, Flat, or Flush

Power consumption

- Max power usage at 10 Vdc: 17 W
- Typical current draw at 12 Vdc: 0.8 A
- Max current draw at 12 Vdc: 1.7 A
